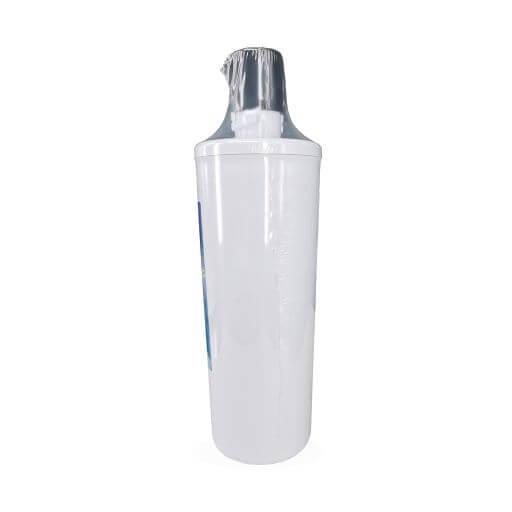

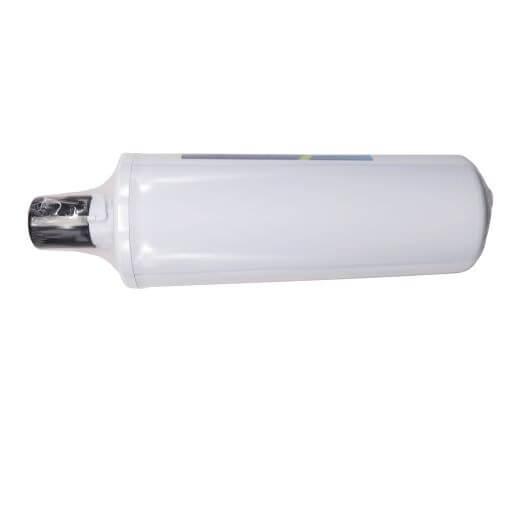

3M Filtrete 3US-AF01 3US-PF01 Water Filter Cartridge

Features

• Economical alternative to 3M 3US-AF01 under sink filters, compatible with Filtrete 3US-AS01, 3US-PF01, 3US-PS01, aqu-3us-af01, AP3-765S, AP3-C765-S.
• The F-701R-2 is a quick-change, triple action water filter which reduces scale, dirt, rust, chlorine, chemicals, bad taste and odours, not remove minerals which may bebeneficial to health.
• Standard under sink quick change water filtration replacement for use with 3US-AS01 system.
• Designed to provide up to 6 months of life or 2000 gallons.
• Easy installation and operation.

Compatibility

Compatible with 3M Filtrete 3US-AF01, Aqua-Pure AP Easy C-CS-FF, 3US-AS01, 3US-PF01, 3US-PS01, aqu-3us-af01, AP3-765S, AP3-C765-S, Replace part No. 4306809, 4306817, 4306825

For 3M AP3-765S Hot Water Tap, suitable for Older models HC-1100 Hot and Cold filtered water and model GN-1100 Hot filtered water only, for Newer models HC-3300 Hot and Cold filtered water and model H-3300 Hot filtered water only.

InSinkErator F701R, F-701R, 1100, 3300, 43961, EWF-8001A, VFL401

Whirlpool WHCF-SUF, WHCF-SUFC

Manitowoc K-00337, K-00338, K00337, K00338, Delta RP787 02

Operating Specifications

• Operating temperature 0.6°C /33°F - 38°C/100°F
• Working pressure 140kPa/20psi - 689kPa/100psi
• Rated capacity 7,571 litres/2000 gallons
• Flow rate 7.6Ipm/2gpm

Quick installation

1. Shut off the wter supply.
2. Grasp existing filter and remove by rotating left until it stops and pull down releasing it from the filter head.
3. Align replacement filter guide channels with the corresponding posts of the filter head.
4. Insert the filter upward until it fully seats into the head, then rotate right until it stops.
